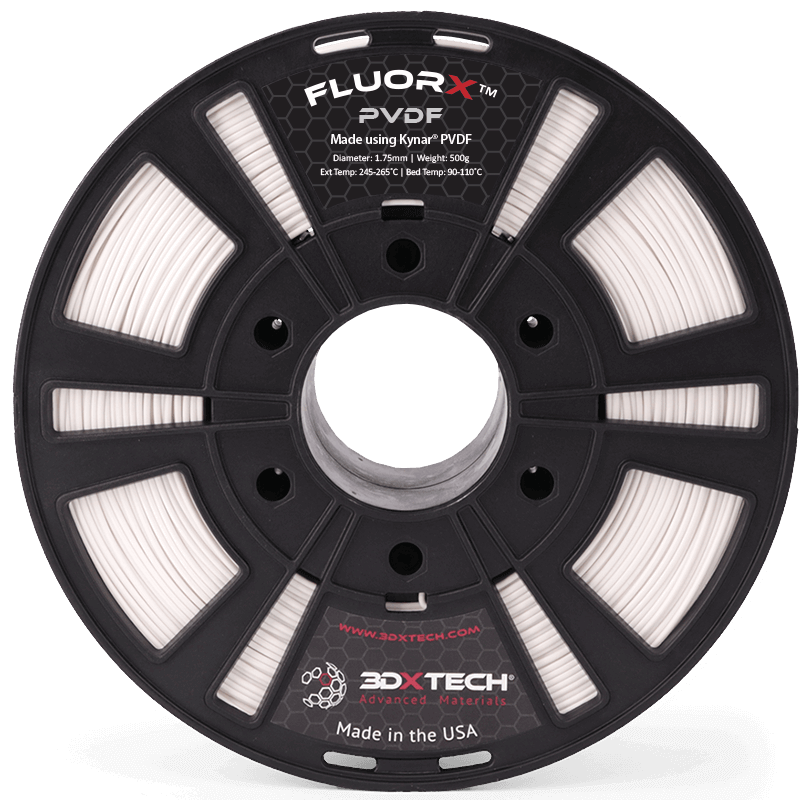

FluorX PVDF
FluorX PVDF

FluorX PVDF

SKU: PVD01UN100750NAT0

Regular price
$188.00
Sale price
$188.00
Regular price
$0.00

Benefits of FluorX PVDF

  • High Thermal Properties: 130C CUT
  • Excellent resistance to a broad range of chemicals, such as automotive fluids, oils, gas, lubricants, fully halogenated hydrocarbons, alcohols, acids, and bases
  • Non-hygroscopic, does not absorb moisture. No drying needed!
  • Inherently UV-resistant with very stable H-F bonds.
  • Low smoke and flame characteristics with a base resin rated V-0
  • Long-term hydrolytic stability
  • Resistant to nuclear radiation
  • Very good abrasion resistance – similar to Nylon and UHMW-PE for high-wear applications
Color Code: Natural
Diameter:
Reel Size:
In Stock

Yes, you can. Our 750g reels fit within the size requirements of popular automated material management systems like the Bambu AMS, Creality CFS, and Anycubic ACE Pro. That means you can run 3DXTECH’s engineering-grade filaments in your favorite system.

Learn More

3DXTECH is now ISO 9001:2015 certified. This internationally recognized standard for quality management systems reflects a rigorous, third-party validation of how our organization establishes, maintains, and continuously improves its processes to ensure consistent quality

See our ISO 9001:2015 Certification

Weights and dimensions are close estimates. However, the exact numbers may vary slightly. Multi-material management system (MMS) compatibility is based on dimensions for a variety of systems by different manufacturers.

See Our Empty Reel Guide

FluorX PVDF

PVDF [Polyvinylidene fluoride] is a high-performance polymer which offers exceptional thermal and chemical resistances. Rated for uses up to 130C – this filament can be used in demanding applications under the most extreme conditions. PVDF is resistant to most chemicals and solvents, making it a great fit for applications which will be exposed to harsh environments.

MADE IN THE USA

We manufacture all of our filaments in our 68,000 ft² manufacturing facility (located in Grand Rapids, Michigan) using state-of-the-art equipment and processes. Our goal continues to be to make the most innovative filaments on the market – targeting difficult end-use applications.

Print Recommendations

365-390°C
Extruder Temp
245-265C
140-160°C
Bed Temp
90-110C
Recommended
Heated Chamber
Not required
0.4mm diameter minimum
Nozzle Specs
No special concerns
0.10mm or higher
Layer Height
No special concerns
65°C for 4 hours
Drying Specs
Not required

Have a Great Profile? Share It With the Community

Our filament catalog is big, and printer setups are even bigger. Rather than guessing at one-size-fits-all settings, we’re building a living library of slicer profiles on GitHub. With your help, we can cover more printers, refine defaults faster, and make great results easier to achieve from the first print.
