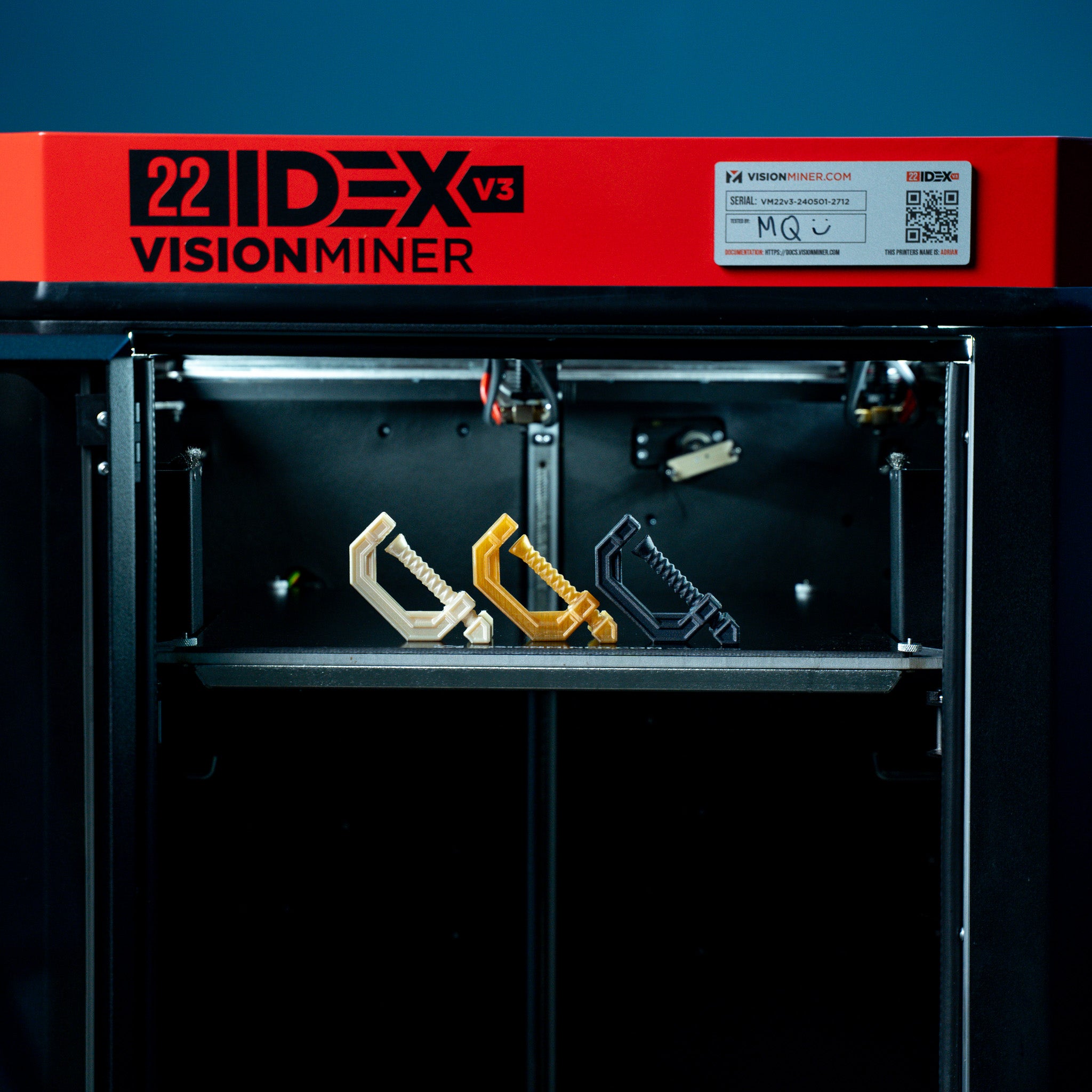

22 IDEX v3 Printer


HARDWARE FOR ADVANCED USERS
500ºC Nozzles
Independent Dual-Extruder Hotends
Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.
Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.
200ºC Build Platform
True Self-Leveling Build Platform
Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface.
On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.
100ºC+ Chamber
Actively Heated Chamber
Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 100ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.
Dimensions | Electrical | Key Features |
---|---|---|
External: 21.6" x 22.36" x 29.09" | 110 Volts | True Self-Leveling |
Build Volume: 13.7" x 13.7" x 17.7" | 50/60Hz | Fume Extraction |
Weight: 90.7kg (200lbs) | Standard USA Plug | Unlimited Material Capabilities |

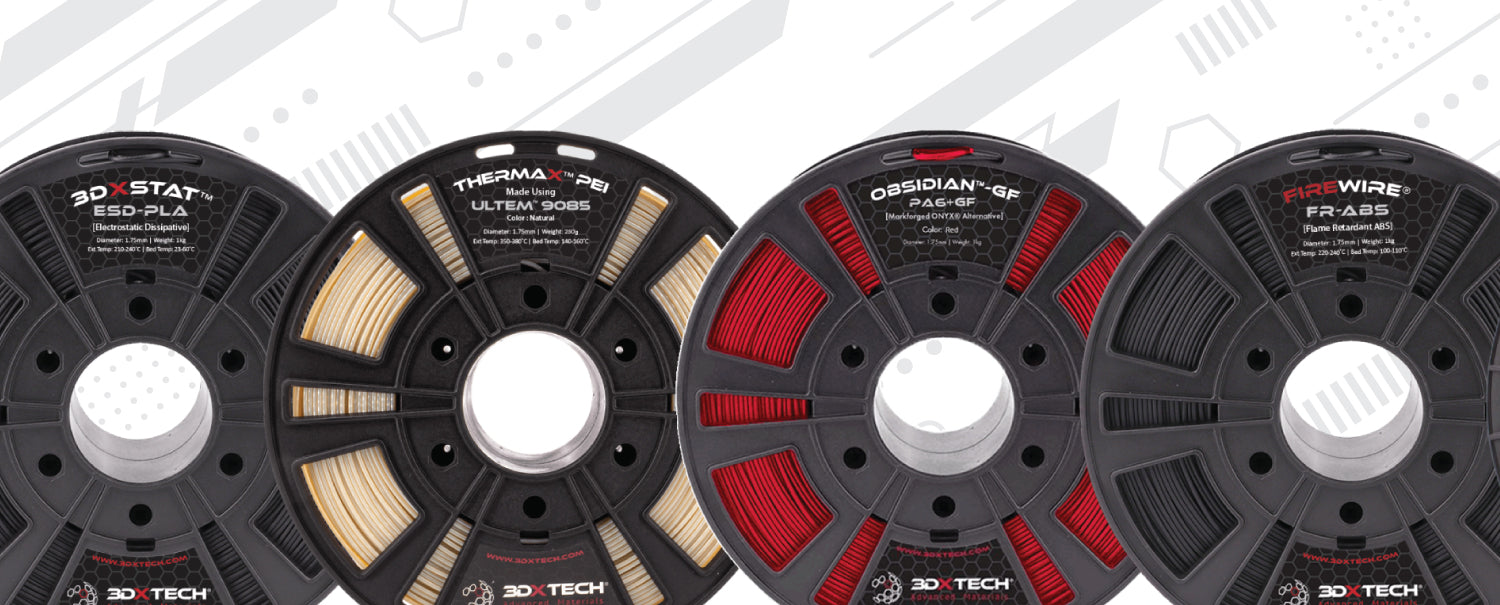

MADE FOR ENGINEERING MATERIALS




Let's Talk More About The 22IDEX
